ICS 201-3 - Current Organization
The ICS 201-3 Current Organization provides a structured view of high-level personnel working on the incident, during the initial response phase. This organization chart documents the chain of command which should be established early as early as possible in an incident. It lists the current ICS positions and each person assigned to that position. For help using general form functions (e.g. Create/Open Version, Save, etc.) and accessing preloaded versions, see the General Form Functions page.
Contents
Build the Organization Chart Structure
Access & Modify Blank Organization charts
Open and Save Preloaded Organization Charts
Manage Org Chart Orientation & Size
To start with a blank organization chart, select the Create a new version of this form button

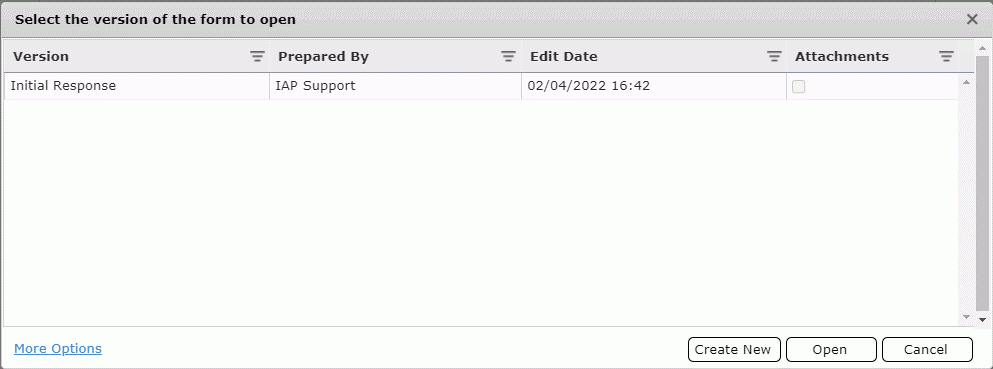

or from the Select the version of the form to open window select the Create New button
. Name the Organization chart by typing a name into the Version Name field
.
Select a pre-existing organization chart from the list to use as a baseline for a new organization chart or to which updates need to be made. Click OK.
To open a different version, click the Open a different version button
.
To open a preloaded version, click the Open a Preload button
.

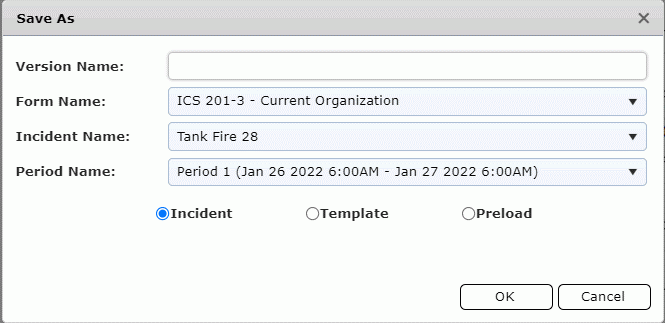

To create a new organization chart from the pre-existing version just created, click the Save the current form as a new version (Save As) button
. The Save As dialog box will appear. Name the Organization chart a unique version name.

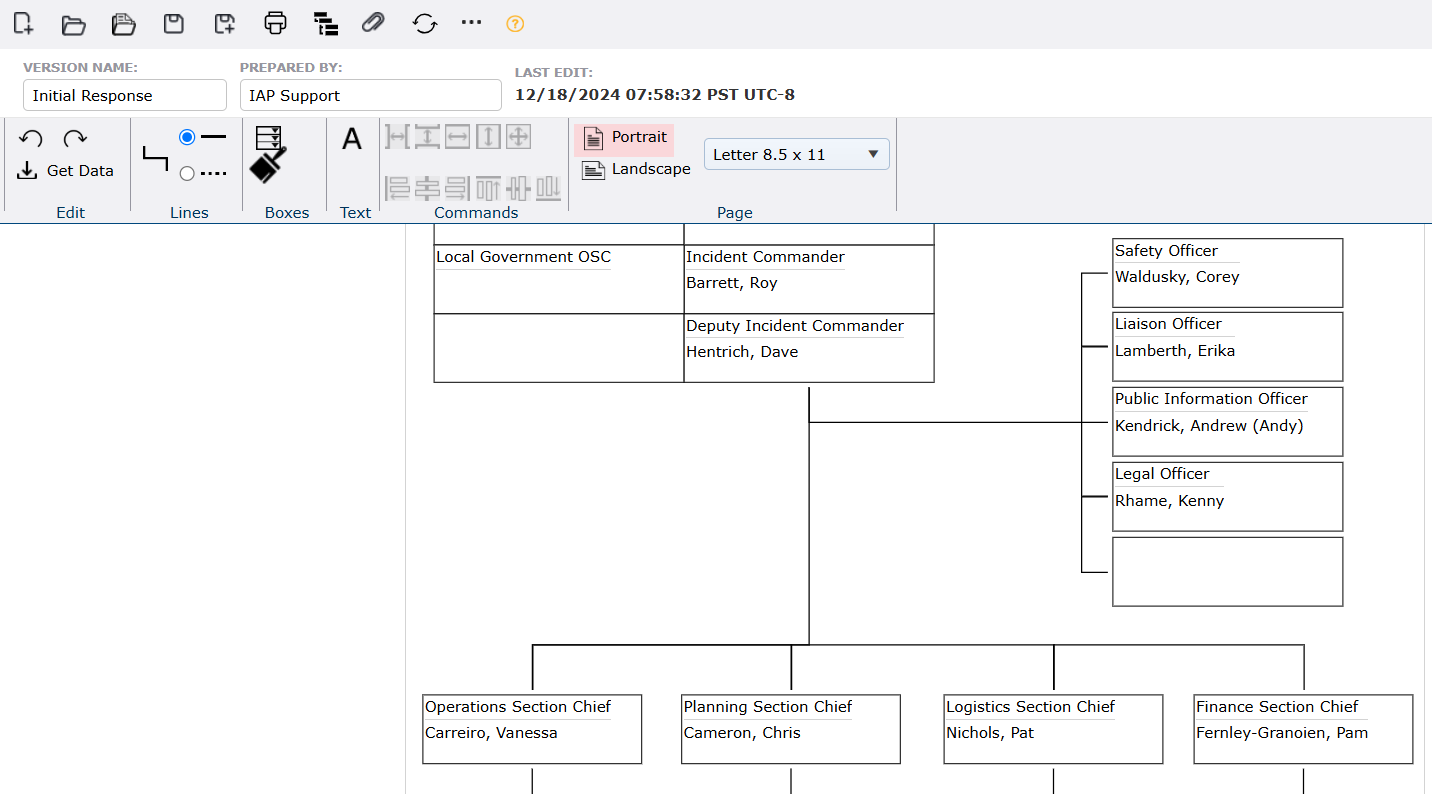

To move a box, click on the box and drag it to the new location.
To edit the contents of the box, either type into the desired field or use the dropdown tab next to it to see a list of preloaded entries.
The Edit icons allow the user to Undo
and Redo
the last change made.
To add lines, click on
and these will appear
around the boxes. Hover over the green “x” turns into a box
and then click on one and drag to another node to create a line. Choose a solid line or dashed line depending on the line selected to its right
.
To add boxes, click on the Add button
; then click where the box is to appear within the organization chart.
Click on the Change Outline Color button
to change the outline color of the box.
Click on a box or line to highlight it (green edit nodes will appear on selected item).
Click and drag the end of a line to move and connect to another box.
Click and drag the corner of a box to resize it or click inside the box and drag to move it.
Click and drag the edge of a box in/out to resize it.
Commands gives the user ability to make multiple adjustments at one time for every position box selected. The user can Space Across
, Space Down
, Same Width
, Same Height
, Same Size
, Align Left
, Align Center
, Align Right
, Align Top
, Align Middle
, and Align Bottom
.
Note: Multiple boxes must be selected before these tools become active.
Page options are available for different page layouts and sizes.
Choose Portrait or Landscape depending on the orientation and size of the organization chart.
Click on the down arrow
for the dropdown list
of paper sizes: Letter, Legal, Tabloid, ANSI-D, A0, A2, A3, or A4 depending on the size of the organization chart created.
NOTE: The correct paper size must be available and, in the printer, to get the correct size to print out.
The Edit Contents feature allows the user to add positions and names to the organization chart.
Click on the dropdown arrow to the right of the top section of the box
to select a position or select Create New to add one. For more information on adding new positions see the Create New Position Drop Down page.
Click inside the bottom section of the box, then on the dropdown arrow to the right of the bottom section of the box
to select the person’s name assigned to that position or select Create New to add one. For more information on adding new personnel see the Create New Personnel Drop Down page.
NOTE: If more than one person is assigned to a position, select the Add
button to add another name box under the positions.
A user can add personnel from other forms by clicking the Get Data button
to grab personnel data to pull into the selected version. For more information, see the Get Personnel Data page.
NOTE: The position titles from the source must match in the current version for the Get Personnel Data to pull the correct name.
